Technology that connects

HMV.Nr.: 18.99.04.00

Version

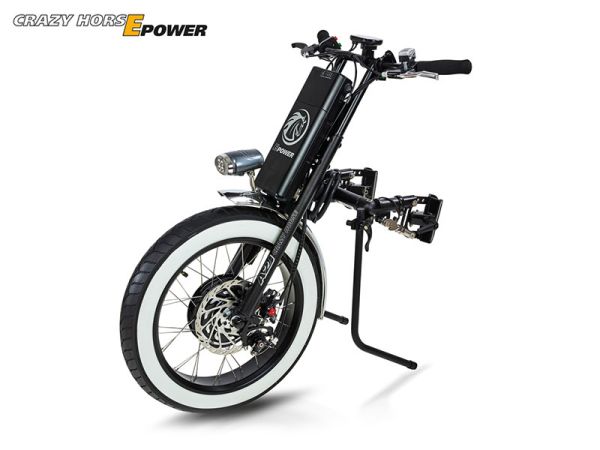

Electric pulling aid for the wheelchair

  • Colour: in silver or matt black
  • 400 Watt powerful freewheel brushless motor 35 Nm
  • Driving function forward and backward
  • Speed 6 km/h
  • 15 km/h require
  • 30km/h or more for use on private land
  • 36 Volt 13,4Ah 482 Wh / Li ION – Battery
  • Charger 36 volt 1350 mA – TT
  • 48 Volt 10Ah / LiFEPO4
  • Charger 48Volt 3A
  • Throttle right and left
  • Twist throttle right
  • Cruise control
  • 20 Inch front tire 20 x 3.45
  • Rim 80mm in black
  • Parking brake left or right mountable
  • Disc brake mechanically (diameter 200mm)
  • Electronic brake (rekuperation)
  • Fender chromed
  • Steering damper
  • Angle adjustable handlebars
  • Light with on and off switch
  • Bicycle speedometer
  • Horn
  • Stand
  • Weight approx 18-24 KG
  • 36 Volt recommended for people aged up to 75KG of body weight
  • 48V oltrecommended for people aged up to 75KG of body weight
  • Technically from seat width 32cm to seat width 45cm possible

Available downloads / PDF

Scope of application

For activities outside the home:

  • rolls easily over any surface
  • on cobblestones
  • sidewalks fall off to one side
  • gravel roads, dirt roads, forest roads
  • light sleepers and stages
  • sandy beach
  • shingle beach
  • meadows
  • city breaks
  • and much more

Special features

  • Frame protection made of plastic
  • Hand-parking brake
  • 48 volt battery
  • Light with horn
  • Reverse gear
  • Cruise control
  • Rotary throttle

Steering head

The unique steering head design delivers razor sharp handling and high steering stability and conceded during cornering and straight-line stability, additionally reinforce two O-rings this effect!

Light Version

400R with hole rims 36 volts.
20 inch rear wheels on 80mm rims and 80mm hubs.
