HMV.Nr.: 18.99.04.00

Version

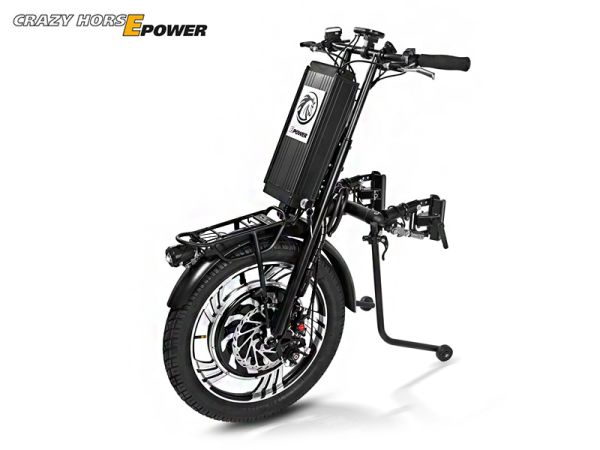

Electric pulling aid for the wheelchair

  • Colour: in silver or matt black
  • 1400 Watt powerful freewheel brushless motor 85 Nm
  • Motor development approx 1000 Watt
  • Driving function forward and backward
  • Speed 6 km/h
  • 15 km/h require
  • 40km/h or more for use on private land
  • 48 Volt 10Ah / LiFEPO4
  • 48Volt 20Ah / LiION
  • Charger 48Volt 3A

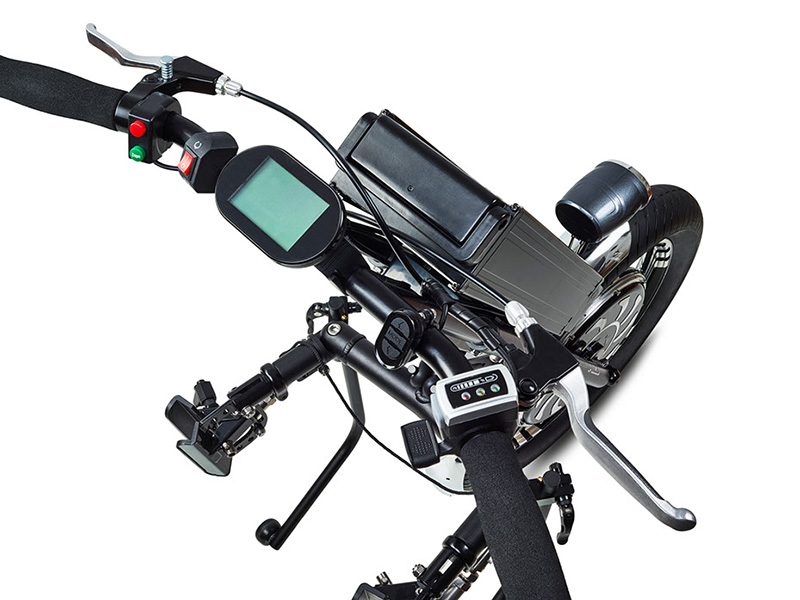

  • Throttle right and left
  • Twist throttle right and left
  • Cruise control
  • 20 Inch front tire
  • Rim 40mm in silver die-cast aluminum
  • Parking brake left or right mountable
  • Disc brake mechanically (diameter 200mm)
  • Electronic brake (rekuperation)
  • Fender chromed / black
  • Steering damper
  • Angle adjustable handlebars
  • Light with on and off switch
  • Bicycle speedometer
  • Horn
  • Stand
  • Weight approx 28 KG
  • Recommended for people aged up to 115KG of body weight
  • Technically from seat width 32cm to seat width 45cm possible

Available downloads / PDF

Scope of application

For activities outside the home:

  • rolls easily over any surface
  • on cobblestones
  • sidewalks fall off to one side
  • gravel roads, dirt roads, forest roads
  • light sleepers and stages
  • sandy beach
  • shingle beach
  • meadows
  • city breaks
  • and much more

Special features

  • Frame protection made of plastic
  • Hand-parking brake
  • 48 volt battery
  • Light with horn
  • reverse gear
  • Cruise control
  • Rotary throttle
